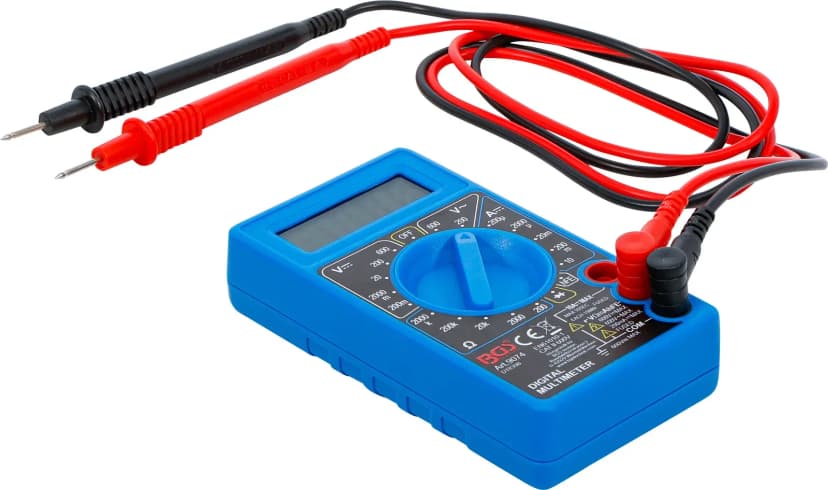

Digital Multimeter, 3 1/2-digit

About this product

• suitable for measurements in CAT II area
• 3 1/2 digit, 7 segments, 12.5 mm LCD
• indication for overflow, polarity and low battery voltage
• measuring ranges for resistance, AC voltage, DC voltage, diode voltage drop and hFE transistor measurements
• operating temperature: 10°C ~ 40°C, 0 ~ 75% relative humidity
• weight: 140 g (incl. battery)
• 200 mV, resolution: 10 µV, accuracy: ±0.5% +10 digit
• 2000 mV, resolution: 1 mV, accuracy: ±1% +5 digit
• 20 V, resolution: 10 mV, accuracy: ±1% +5 digit
• 200 V, resolution: 100 mV, accuracy: ±1% +5 digit
• 600 V, resolution: 1 V, accuracy: ±1.2% +5 digit
• 200 V, resolution: 10 mV, accuracy: ±0.5% +10 digit
• 600 V, resolution: 1 V, accuracy: ±0.5% +10 digit
• 200 uA, resolution: 100 nA, accuracy: ± 1.8% +2 digit
• 2000 uA, resolution: 1 µA, accuracy: ± 1.8% +2 digit
• 20 mA, resolution: 10 uA, accuracy: ±1.8% +2 digit
• 200 mA, resolution: 100 µA, accuracy: ± 2% + 2 digit
• 10 A, resolution: 10 mA, accuracy: ±2% +10 digit
• 200 Ohm, resolution: 0.1 mOhm, accuracy: +/-1% +10 digit
• 2000 Ohm, resolution: 1 Ohm, accuracy: +/-2% +4 digit
• 20 KOhm, resolution: 10 Ohm, accuracy: +/-2% +4 digit
• 200 KOhm, resolution: 100 Ohm, accuracy: +/-2% +4 digit
• 2000 KOhm, resolution: 1 KOhm, accuracy: +/-2% +4 digit
