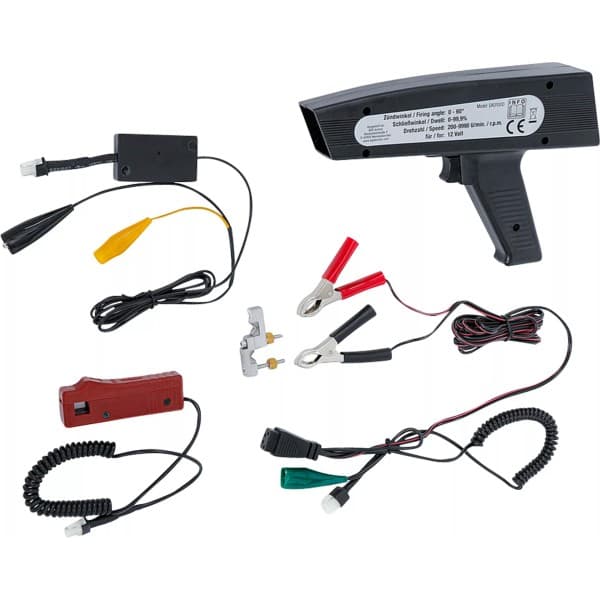

Digital stroboscope for petrol and diesel engines

• electronic angle adjustment
• particularly suitable for engines that do not have an angle mark on the pulley
• further measurements can be taken via the easy-to-read 7-segment display:
• Focus on 2-, 3-, 4-, 5-, 6- and 8-cylinder engines
• Voltage and power loss testing
• Engine speed
• Also used for testing the start of diesel fuel injection
• The signal is captured by a piezoelectric transducer fitted to the diesel line
• ignition angle: 0 to 60°
• drive speed: 200 to 9,990 rpm
• hold: 0–99.9 per cent
• power supply: 12 V
