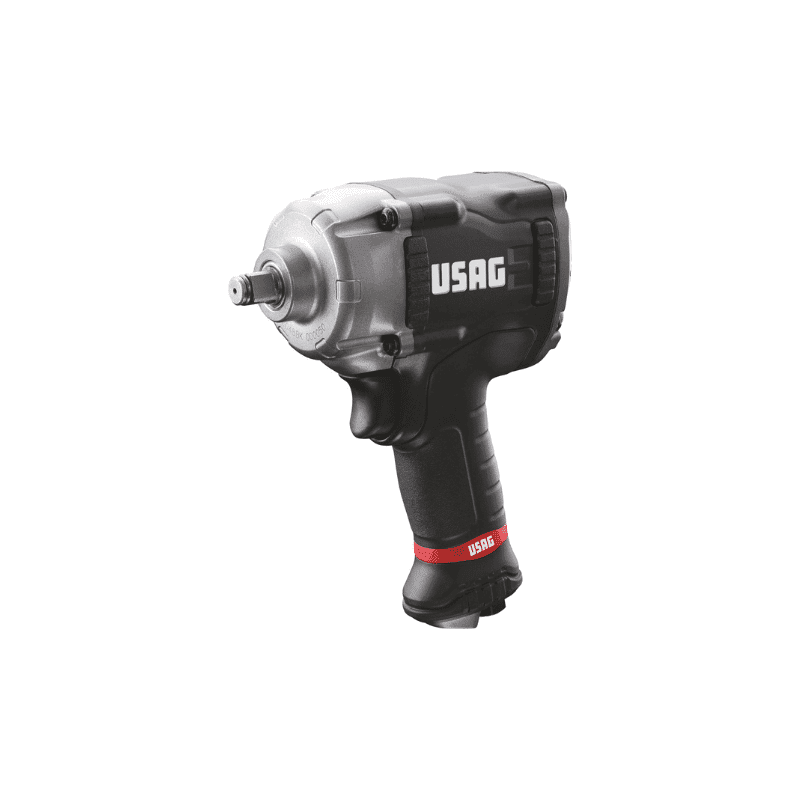

'-magnesium housing
-reversible dual-hammer design
-3 torque settings
-capacity: M16
-maximum impact force: 1,600 Nm
-Blows per minute: 1,300
-No-load speed: 7,000 rpm
-Average air consumption: 172 l/min
-Recommended air pressure: 6.2 bar
-inlet: 1/4"
-hose diameter: 10 mm
-weight: 2.0 kg
⚠️ Important notice: Ensure a long service life for your pneumatic tools!
To ensure your pneumatic tools always operate flawlessly, reliably and at full power, regular and proper lubrication is essential. Pneumatic tools absolutely require proper care to function correctly, as dry air and friction without lubrication quickly damage the internal mechanical parts.
How to ensure proper lubrication?
Automatic lubrication (Recommended): Always connect the tool to a system with a filter-lubricator unit (we recommend units with micro-mist). The unit should be set to dispense approximately 2 drops of oil per minute.
Manual lubrication (if you do not have a lubrication unit): Before and after each use, apply a few drops of oil specifically designed for pneumatic tools (e.g. SAE #10 or specialised air tool oil) to the tool’s air inlet. Then run the tool for a few seconds to ensure the oil is evenly distributed.
LUBRICATING OIL
Lubrication of internal mechanisms (Grease): Every 3 to 5 months (depending on frequency of use), inject suitable grease for impact mechanisms through the designated grease nipples.
💡 BEFORE FIRST USE: It is essential to oil every pneumatic tool before using it for the very first time, as this prevents immediate damage when it is first started up.
🛑 WARNING: When working with an oiled tool, some excess oil may be expelled through the exhaust. Always point the exhaust outlet away from yourself, other people or sensitive objects.
Regular lubrication will help you avoid unnecessary breakdowns, maintain the validity of your warranty and ensure that your tool will serve you well for many years to come!
