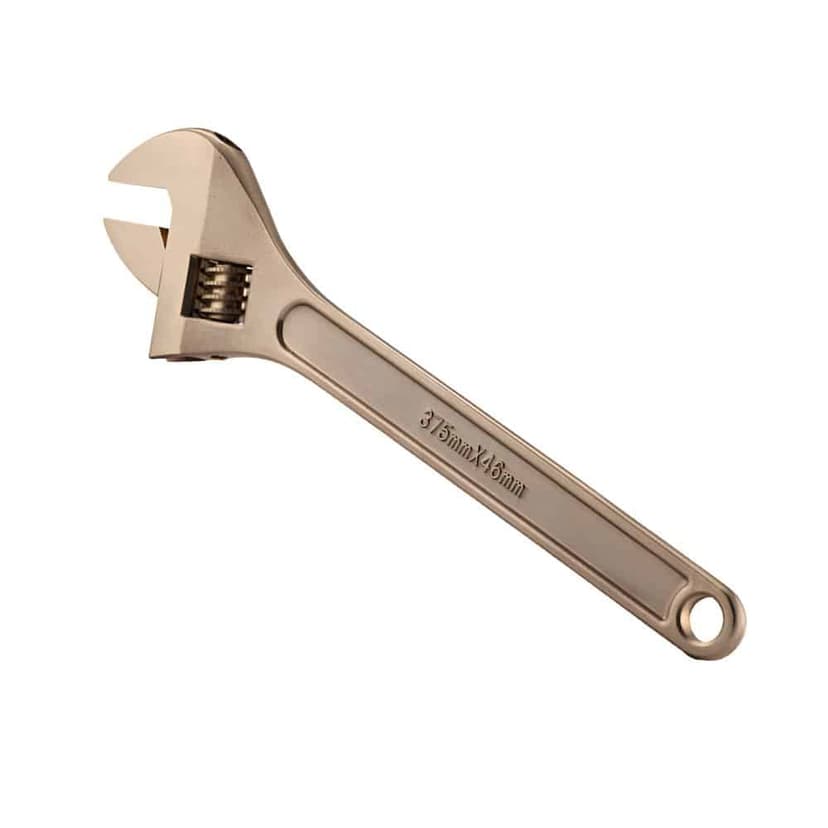

X-Spark 125 Be-Cu non-sparking adjustable spanner | ATEX explosion-proof tools
When working in environments with a high risk of explosion and fire, choosing the right equipment is crucial for the safety of workers and the protection of property. The X-Spark 125 non-sparking adjustable spanner (also known as a safety ‘French’ spanner or adjustable open-end spanner) represents the cutting edge of technology in the field of professional safety tools.
This spanner is specifically designed for use in potentially explosive atmospheres (ATEX zones), such as oil refineries, gas plants, chemical plants, paint shops and mines throughout Slovenia. The use of non-sparking materials prevents the generation of mechanical sparks that could ignite flammable gases, vapours or dust particles in the air.
A selection of premium non-sparking materials
The X-Spark 125 wrench is available as standard in two exceptionally high-quality alloys, which ensure complete fire and explosion safety:
Beryllium copper (Be-Cu): A premium material for the most demanding operating environments. It is characterised by exceptional tensile strength, a high melting point and non-magnetic properties. It is the ideal choice for environments where strong magnetic fields and high mechanical loads are present.
Aluminium bronze (Al-Cu): An excellent alternative offering an optimal balance between cost and performance. It ensures a high level of resistance to corrosion and wear and reliably prevents the formation of dangerous sparks during day-to-day operation.
Key advantages and technical characteristics:
Safety certificates: The product complies with strict international safety standards (BAM, FM, GS, ATEX certificates, etc.).
Drop-forged technology: A special high-pressure forging process increases structural strength, material density and resistance to high torque loads.
Exceptional service life: High-quality raw materials and precision machining ensure a long service life for the tool, even under continuous industrial use.
Adjustable jaws: The ergonomic design with a smooth worm screw allows for precise adjustment of the jaw width to accommodate different sizes of nuts and bolts.
Table of sizes and technical specifications:
Select the appropriate spanner size based on the length (L) and maximum jaw span (Kmax). Detailed specifications for the beryllium copper (Be-Cu) and aluminium bronze (Al-Cu) versions are listed below:
Product code
Length L (mm)
Kmax (mm)
Be-Cu weight (g)
Al-Cu weight (g)
125-1002
100
13
33
30
125-1004
150
18
145
130
125-1006
200
24
275
240
125-1008
250
30
483
435
125-1010
300
36
780
715
125-1012
375
46
1400
1220
125-1014
450
55
2150
1900
125-1016
600
65
3500
