Professional digital multimeter

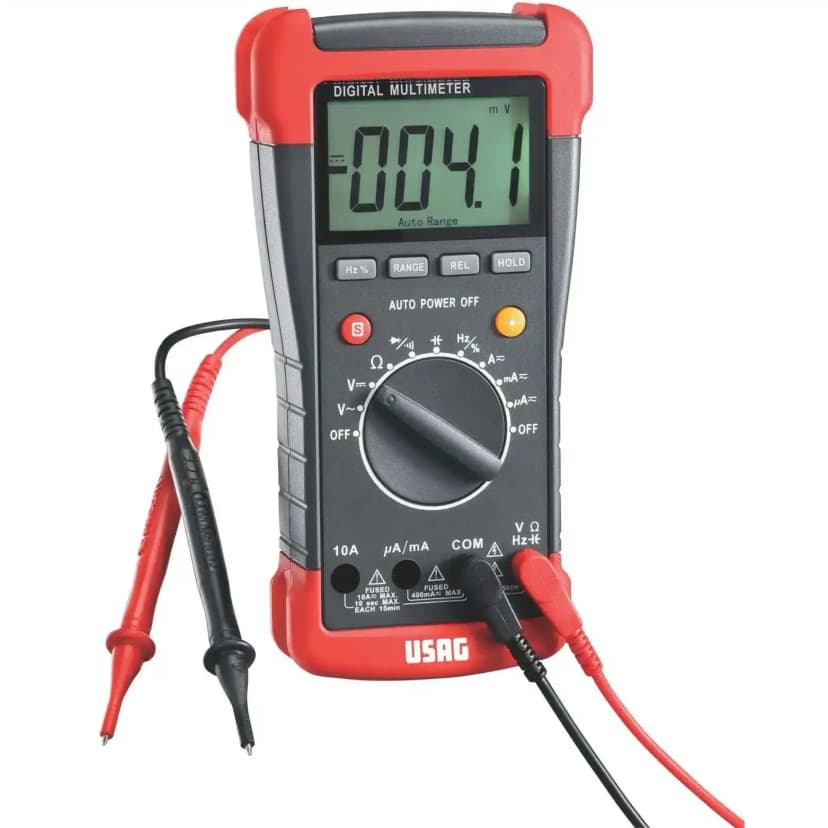

USAG 076 A Professional Digital Multimeter – reliability and accuracy

The USAG 076 A professional digital multimeter is an indispensable tool for any engineer, electrician or keen DIY enthusiast who requires high accuracy and reliability in their measurements. This professional instrument is designed for a wide range of electrical measurements.

Key features:

• Comprehensive measurement: Enables the measurement of alternating current (AC) and direct current (DC) voltage and current.
• Wide measurement range: Also measures frequency (Hz/kHz) and resistance (Ω to MΩ).
• Component testing: Includes continuity and diode testing.
• Additional functions: Features a duty cycle indicator, a data-hold function and a relative mode.
• Automatic calibration: Ensures that measurements are always accurate.
• Safety: Complies with the CAT III 600 V standard, ensuring a high level of safety during use.
• Ready to use: The multimeter is supplied with a pair of insulated test leads.

Technical highlights and specifications:

• Direct current (DC) voltage: 400 mV to 600 V.
• Alternating current (AC) voltage: 4 V to 600 V.
• Frequency: From 10 Hz to 100 kHz.
• Resistance: From 400 Ω to 40 MΩ.
• Overload protection: DC/AC 600 V.
• Capacitance: From 40 nF to 100 µF.
• Power supply: Uses one 9V battery (included).

Whether you are testing wiring, diagnosing faults or carrying out maintenance, the USAG 076 A offers reliable results and a long service life.
