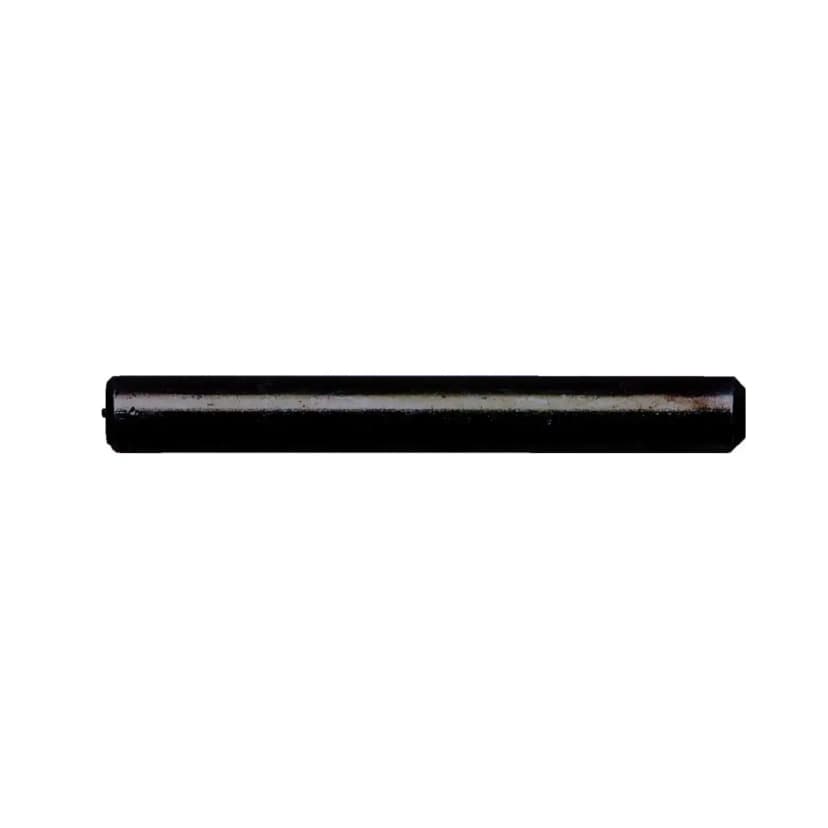

Security PIN

Lock pin for impact sockets – Various sizes

A safety pin (known as a lock pin) is an essential accessory for the safe use of impact sockets (so-called ‘gedore’ sockets for impact drivers). Its main function is to mechanically secure the socket to the drive shaft of the tool.

These pins are specifically designed for impact tools, which have a dedicated hole on both sides of the socket. Insert the pin through these two holes to prevent the socket from coming loose from its mount due to high speeds or vibrations during operation. For complete safety, always fit a suitable rubber O-ring over the pin.

Key benefits:

Maximum safety: Prevents dangerous situations caused by heavy sockets falling out.

High durability: Made from reinforced steel that withstands the strong vibrations of impact wrenches.

Standardised dimensions: Available in various lengths and diameters to suit all standard socket sizes (1/2, 3/4 and 1 inch).

Overview of dimensions and applications (Table):

Select the appropriate size below based on your tool’s square drive:

Dimension (Length x Diameter in mm)

Suitable for drive size

Application

20 x 3

1/2"

Standard impact wrenches

24 x 3

3/4"

Heavier mechanical tasks

37 x 4

1"

Commercial and industrial applications

43 x 5

1"

Heaviest industrial applications
