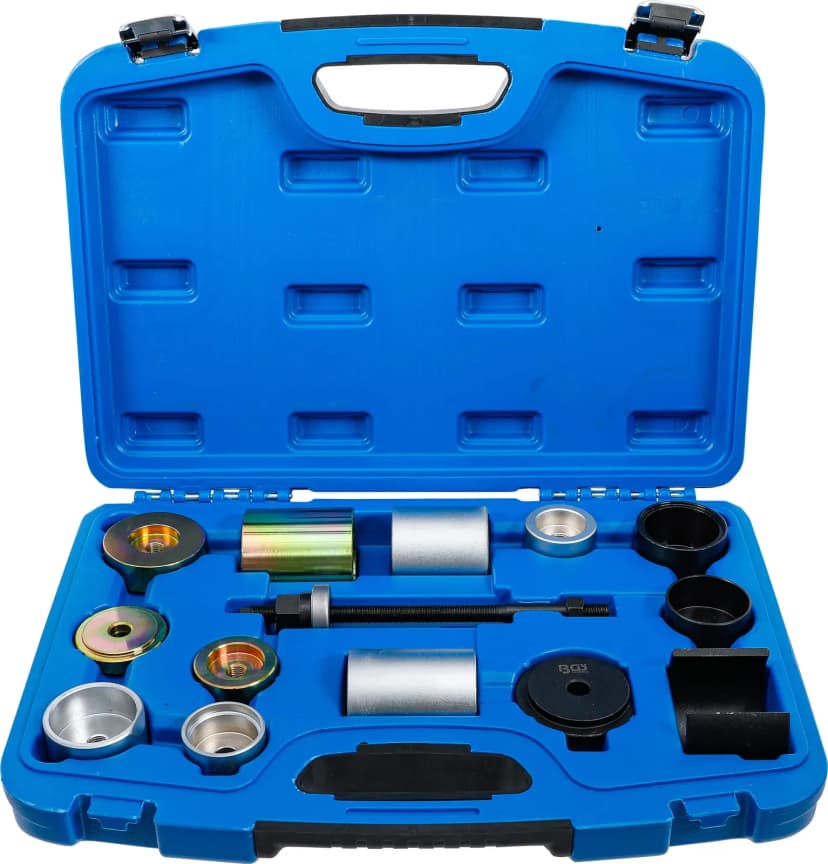

Silent Block Tool Set, for BMW

About this product

• disassembly / assembly of the ball joints in rear wheel carrier, suitable for the following BMW models: 5-series E39 / E60 / E61 / E70
• 6-series E63 / E64
• 7-series E38 / E65 / E66 / E67
• 8-series E52
• disassembly / assembly of the ball joints and rubber bearings in the trailing arm, suitable for the following BMW models: 3-series E36 / E46 / E83
• 5-series E39 / E60 / E61 / E70
• 6-series E63 / E64
• 7-series E38 / E65 / E66 / E67
• 8-series E31 / E52
• Z4-models E85 / E86
• disassembly / assembly of the rubber bush in rear axle carrier (bottom), rear transmission screw, suitable for the following BMW models: 3-series E36 / E46 / E83
• 8-series E31
• Z4-models E85 / E86
• disassembly / assembly of the rubber bearings in the rear transmission suspension front and rear, suitable for the following BMW models: 1-series E81 / E87
• 3-series E36 / E46 / E83 / E90 / E91 / E92 / E93
• 5-series E60 / E61
• 6-series E63 / E64
• 7-series E38 / E65 / E66 / E67
• 8-series E31
• Z4-models E85 / E86
• MINI Cooper S R53
• spindle M12 x 1.5 with bearing nut, length: 225 mm
• 24 mm hexagon drive socket
• disc, 48, 55, 65 mm
• bell, inner Ø: 47 mm, outer Ø: 55 mm, length: 72 mm
• bell, inner Ø: 50 mm, outer Ø: 64 mm, length: 70 mm
• bell, stepped, inner Ø: 36, 40 mm, outer Ø: 45 mm, length: 30 mm
• bell, stepped, inner Ø: 47, 53 mm, outer Ø: 58 mm, length: 43 mm
• bell, stepped, inner Ø: 47, 53 mm, outer Ø: 58 mm, length: 61 mm
• bell, inner Ø: 32 mm, outer Ø: 46 mm, length: 26 mm
• bell, inner Ø: 46 mm, outer Ø: 55 mm, length: 32 mm
• bell, inner Ø: 47 mm, outer Ø: 51 mm, length: 35 mm
• bell, flattened, inner Ø: 47 mm, outer Ø: 55 mm, length: 32 mm
• disc, stepped, flattened, inner Ø: 57 mm, outer Ø: 70 mm, thickness: 13 mm
• sleeve, 1/3 open, inner Ø: 59 mm, outer Ø: 70 mm, length: 55 mm
